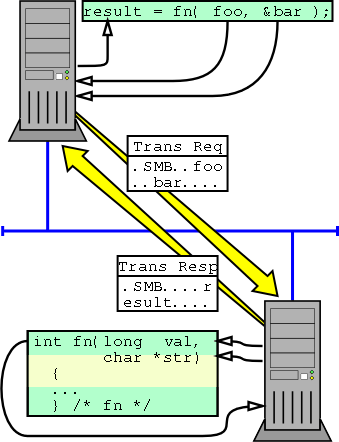

Figure 2.18: Remote Procedure Call via Transaction

[Figure 2.18: Remote Procedure Call via Transaction.]

  • Software on the client calls the function fn().
  • The parameters and pass-by-reference data are packed into an SMB Transaction and sent to the server.
  • The server processes the function call.
  • If results are expected, the server packs the return value(s) and any pass-by-reference data into a reply transaction.
