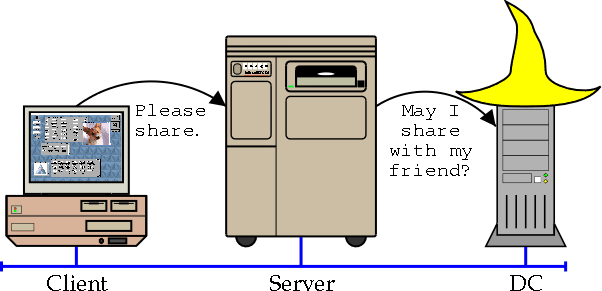

Figure 2.15: Centralized Authentication

[Figure 2.15: Centralized Authentication.]

The Domain Controller (DC) wears a special hat. It keeps track of the common authentication database that is shared by the SMB servers in the Domain. The SMB servers query the DC when a client requests access to SMB services.
